Rain Bird Electric Valves
R435.60 – R560.00 Incl VAT
Rain Bird Electric Valves
Description

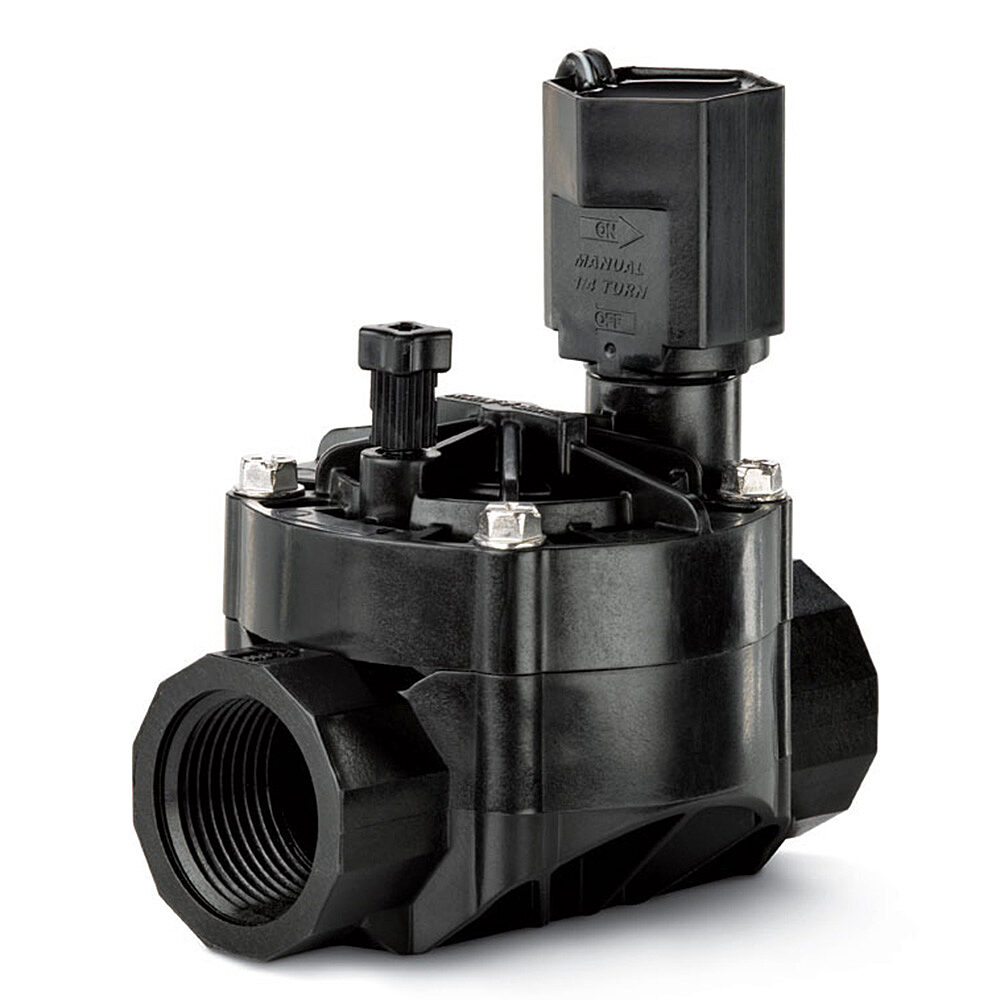

Features (HV Series)
Patented, eccentric, balanced pressure, Buna-N diaphragm with self-cleaning 90-mesh (200 microns) pilot water filter and captured stainless steel spring – Eccentric design provides smoother closing, less water hammer

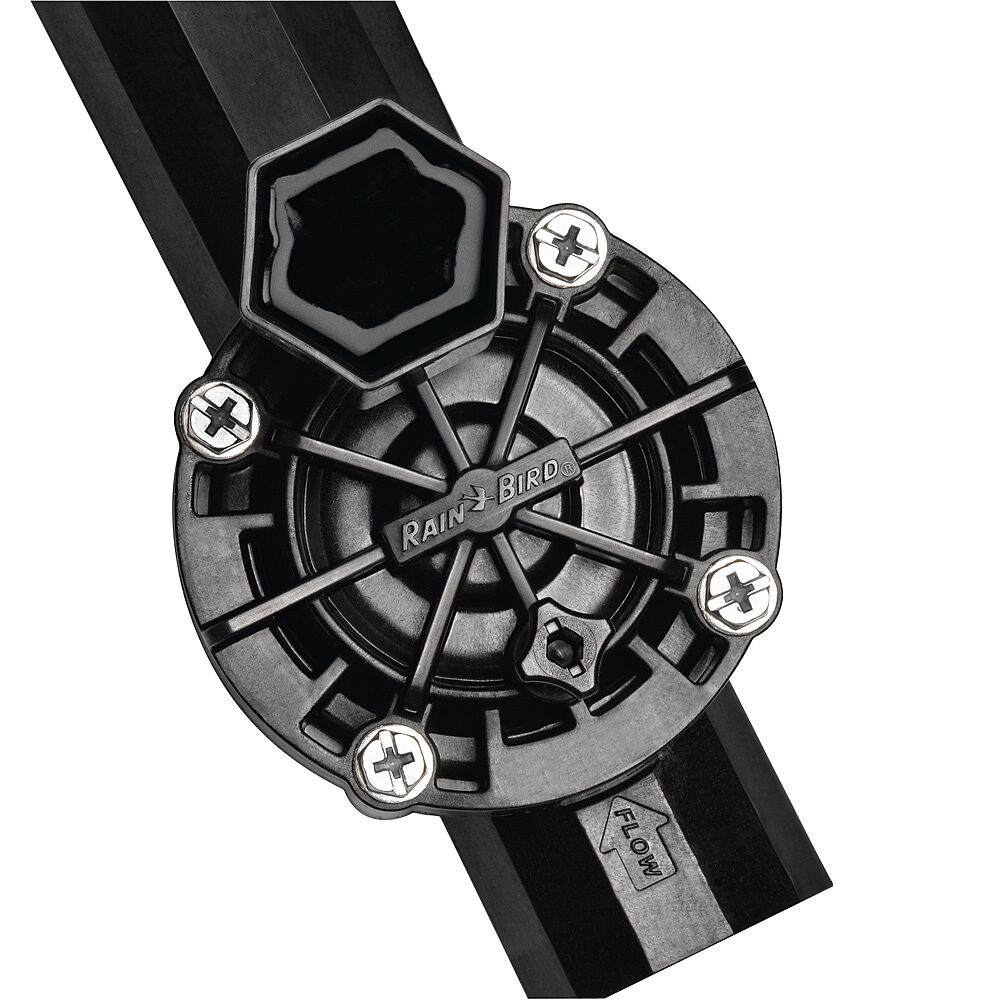

Only four durable, captured multi-drive bonnet screws that come out with half the number of turns for fast and easy servicing – at least twice as fast as the competition

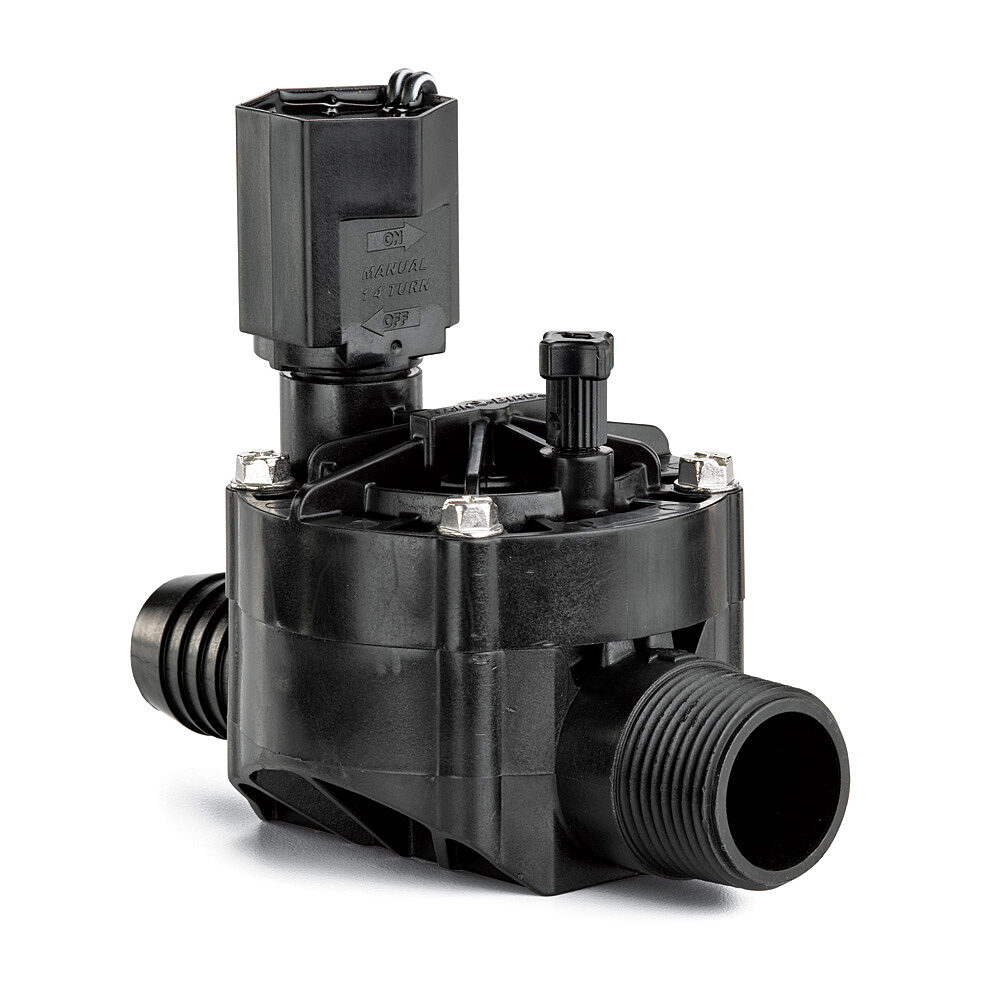

Glass-filled polypropylene body for strength (slip by slip model bodies are PVC)
All popular model configurations available
Compact design, 2.54″ spin radius for tight installations
Reverse flow, normally closed design
External bleed to manually flush the system of dirt and debris during installation and system start-up
Internal bleed for spray-free manual operation
Operates in low-flow and Landscape Drip applications when a 200 mesh filter is installed upstream
Specs (HV Series)
Pressure: 15 to 150 PSI (1,0 to 10,3 bar)
Flow: 0.2 to 30 GPM (0,05 to 6,82 m3/h; 0,01 to 1,89 l/s); for flows below 3 GPM (0,68 m3/h; 0,19 l/s) or any Landscape Drip application, use a 200 mesh filter installed upstream
Operating Temperatures: Water temperature up to 110° F (43° C); ambient temperature up to 125° F (52° C)
Inrush current: 0.290A at 50/60 Hz
Holding current: 0.091A at 50/60 Hz
Solenoid Coil resistance: 70-85 Ohms (40° F – 110° F)
24 VAC 50/60 Hz (cycles/sec.) solenoid
Features (DV Series)

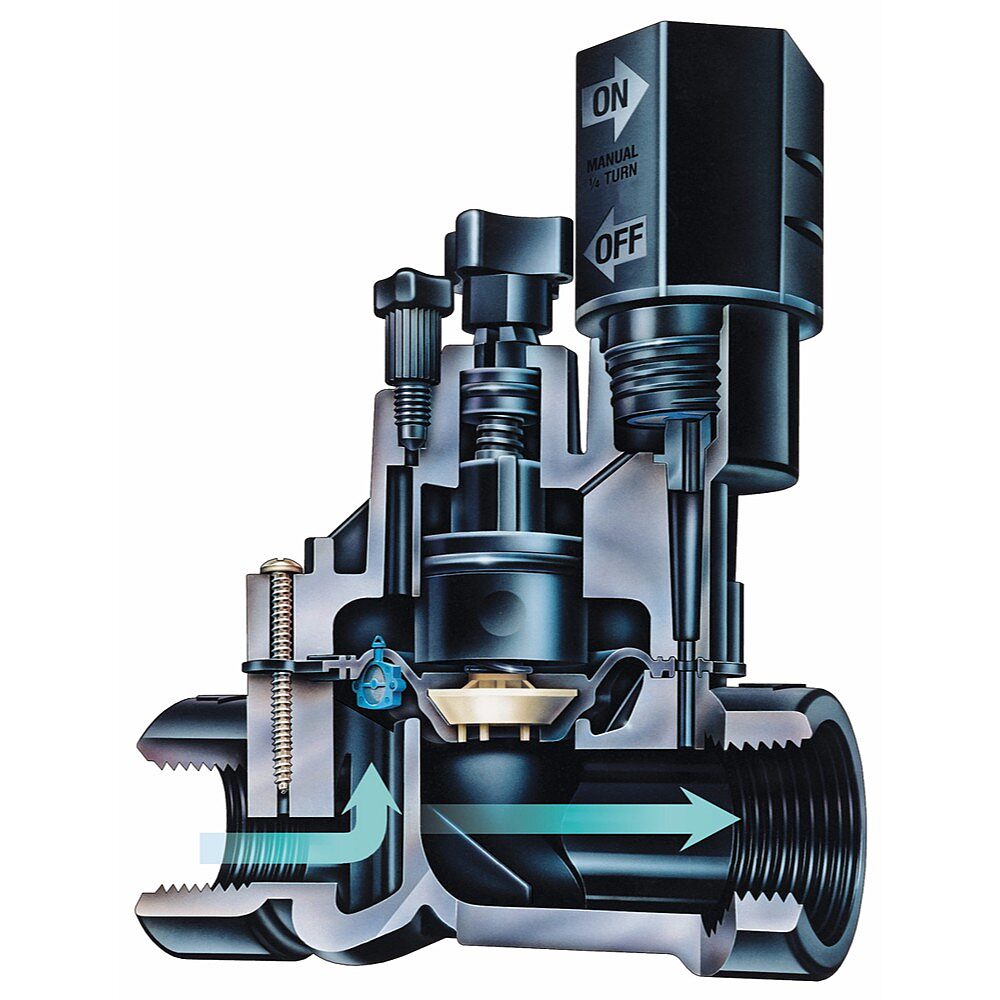

Double-filtered (diaphragm and solenoid) pilot-flow design for maximum reliability and grit resistance
Buna-N, balanced pressure diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring
Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter
Unique, easy-to-turn pressure assisted flow control mechanism (DVF models only)
External bleed to manually flush the system of dirt and debris during installation and system start-up
Internal bleed for spray-free manual operation
Accepts Rain Bird TBOS latching solenoid for use with most battery-operated controllers
Operates in low-flow and Landscape Drip applications when a 200 mesh filter is installed upstream
*Not recommended for use with two-wire control systems
Specs (DV Series)
Pressure: 15 to 150 psi (1,0 to 10,4 bar)
075-DV Non-Flow Control Model: 0.2 to 22 GPM (0,05 to 5,0 m³/h; 0,01 to 1,39 l/s). For flows below 3 GPM (0,68 m³/h; 0,19 l/s) or any Landscape Drip application, use a 200 mesh filter installed upstream

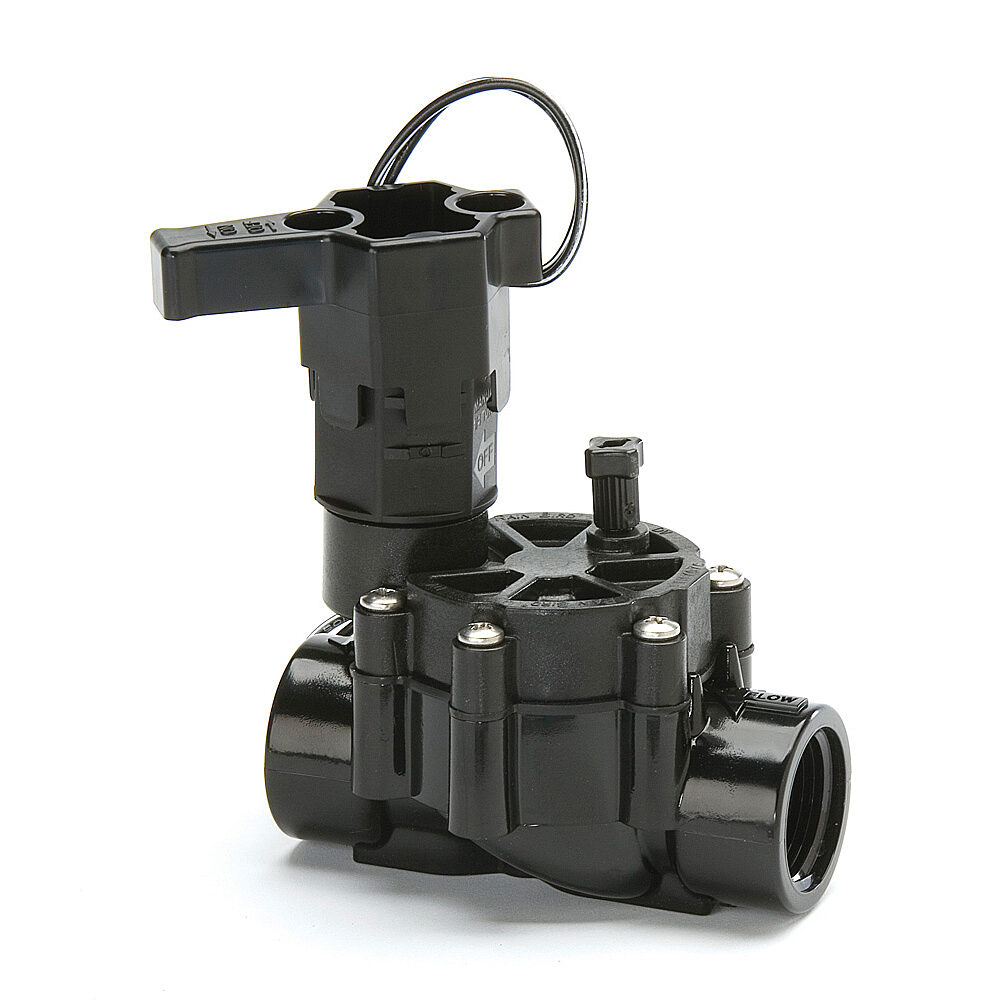

100-DV Non-Flow Control Model: 0.2 to 40 gpm (0,05 to 9.085 m³/h; 0,01 to 2,52 l/s). For flows below 3 gpm (0,68 m³/h; 0,19 l/s) or any Landscape Drip application, use a 200 mesh filter installed upstream

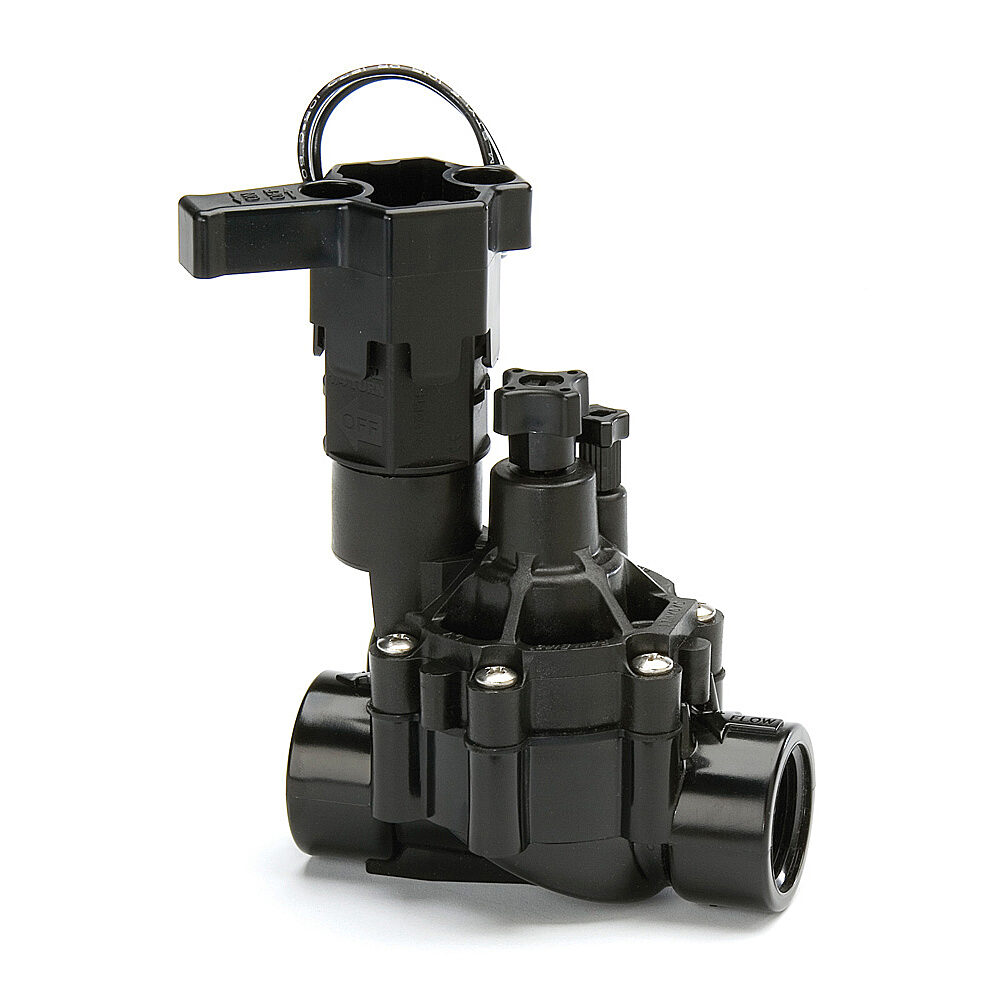

100-DVF Flow Control Model: 0.2 to 40 gpm (0,05 to 9.085 m³/h; 0,01 to 2,52 l/s); For flows below 3 gpm (0,68 m³/h; 0,19 l/s) or any Landscape Drip application, use a 200 mesh filter installed upstream
Water temperature: Up to 110°F (43°C)
Ambient air temperature: Up to 125°F (52°C)
Solenoid coil resistance: 38 Ohms
24 VAC 50/60Hz (cycles per second) solenoid power requirement: 0.450A inrush current, 0.25A holding current
Additional information

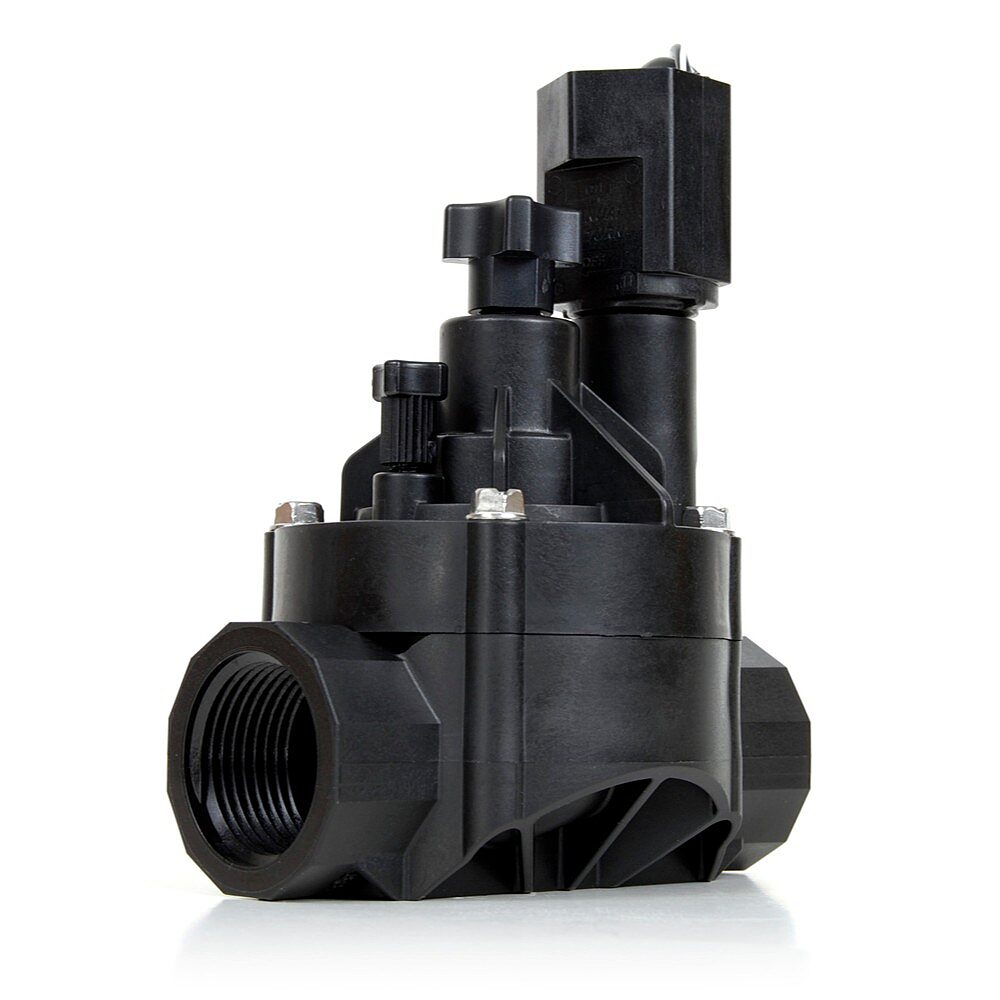

| Model | 100HV, 100HVF, 100DV, 100DVF |
|---|
