220V Self Priming Centrifugal Pumps with Automatic Pressure Switch

Description

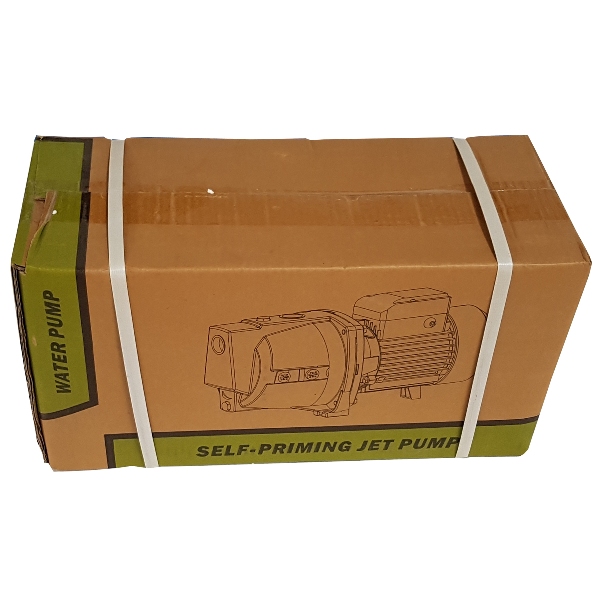

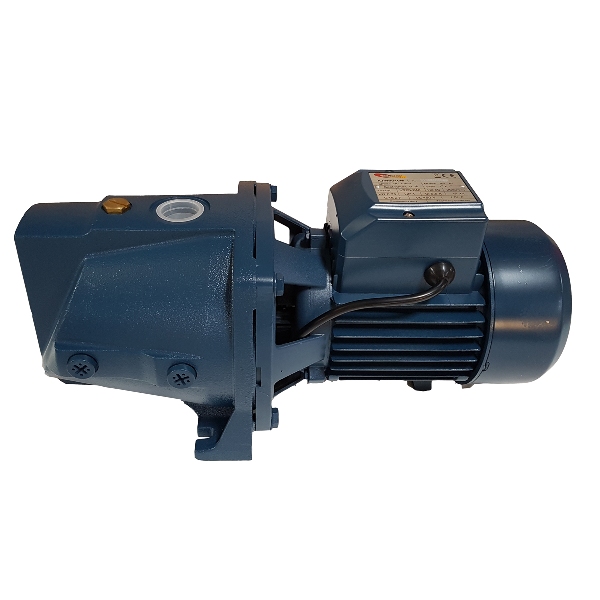

The JSW10M centrifugal pressure pump is a 220V 0.75KW self priming pump used to boost pressure in waterline.

The JSW15M centrifugal pressure pump is a 220V 1.1KW self priming pump used to boost pressure in waterline.

Operating Conditions

• Maximum fluid temperature : 40°C
• Maximum ambient temperature : 40°C

Warranty : 12 Month

Specifications (0.75kw)

• Voltage : 220V – 240V 50Hz
• Power : 0.75KW
• Power : 1H
• Dimensions : 423mm(L) x 190mm(W) x 208mm(H)
• Outlet Size : 25mm (1″)
• Inlet Size : 25mm ( 1″)

Specifications (1.1kw)

• Voltage : 220V – 240V 50Hz
• Power : 1.1KW
• Power : 1.5HP
• Dimensions : 423mm(L) x 190mm(W) x 208mm(H)
• Outlet Size : 25mm (1″)
• Inlet Size : 25mm ( 1″)

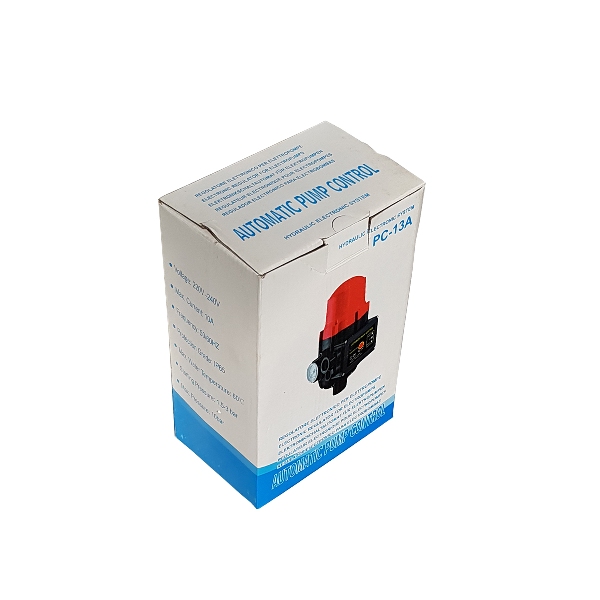

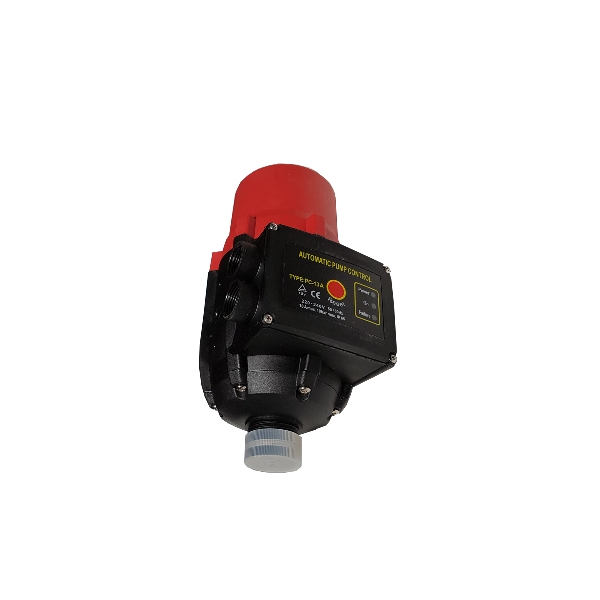

The PC13 automatic pressure pump controller is a 220V electronic controller to automatically start and stop a water pressure pump, it comes with built in non-return valve, dry run protection, pressure gauge and manual start or reset switch.

Operating Conditions

• Maximum fluid temperature : 60°C

Warranty : 12 Month

Specifications

• Voltage : 220V ~ 240V
• Max Current : 10A
• Protection Grade : IP65
• Max Water Temperature : 60°C
• Starting Pressure : 1.5Bar to 3Bar
• Maximum Pressure : 10Bar
• Inlet : Male 25mm (1″)
• Outlet : Male 25mm (1″)
• Includes special non return valve to avoid surges
• Includes dry-run protection
• includes pressure gauge
• Manual start switch (RESET)
• Power LED
• Pump-on LED
• Failure LED
